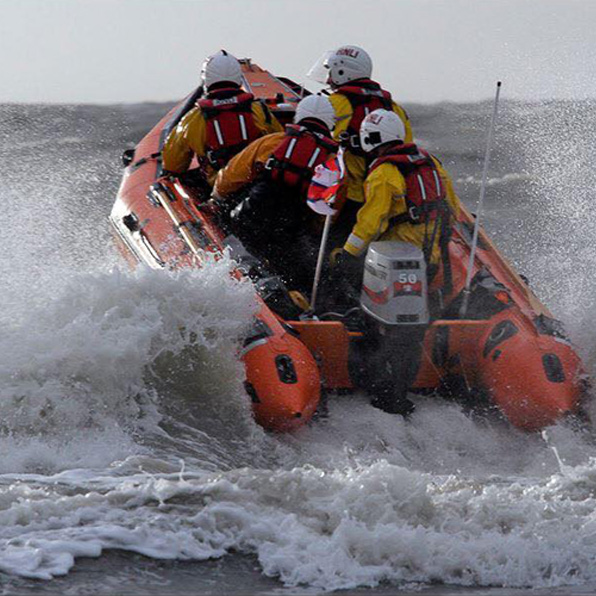

D Class – D861 ‘Hugo Missen’

The D Class (IB1) Lifeboat has been the workhorse of the RNLI fleet for over 50 years. Able to operate closer to shore than our Atlantic 85 the IB1 is ideal for rescues close to shore in fair to moderate conditions. The IB1 can be manually righted by the crew after a capsize. Fitted with the RNLI’s SIMS system which was developed in-house she is equipped with chart plotter, VHF and AIS which allows her location to be tracked in real time. Launched at Porthcawl using a Tooltrak tractor and trailer unit.

Launch Type Trolley or davit
Crew 3/4
Length Overall 5m
Beam Overall 2m
Displacement Load 463kg
Top Speed 25 knots/ 28mph
Engines 1x Mariner 50hp
Range/ Endurance 3 hours at maximum
Survivor Capacity 5

d-class

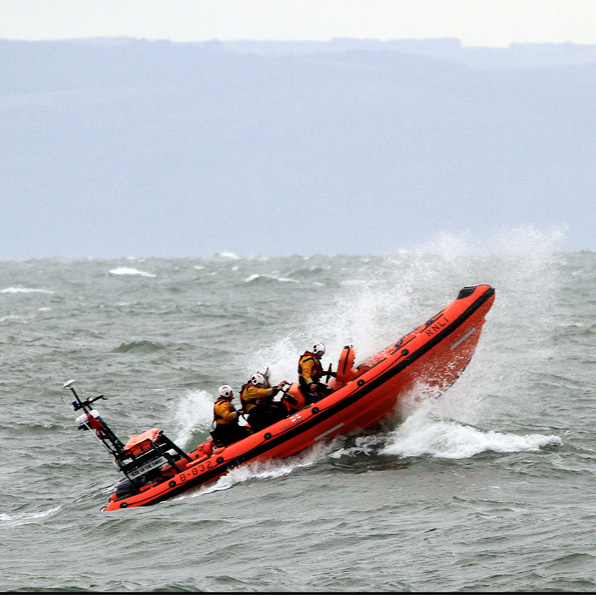

Atlantic 85 – B832 ‘Rose Of The Shires’

boat-main

Rose Of The Shires is one of the new generation of RNLI B-class Atlantic inshore lifeboats, first developed from a design originated at Atlantic College, near Porthcawl, in South Wales. The ’85’ refers to the boat being almost 8.5m in length.

With a crew of four, and two inversion-proof 115hp petrol engines, the lifeboat is capable of speeds in excess of 35 knots, and is fitted with a manually operated righting system which, combined with her inversion proofed engines, allows her to remain operational even after capsize.

At Porthcawl the boat is launched using a specially designed Tractor unit with carriage. Equipped with the RNLI’s SIMS system which was developed in-house she is fitted with radar, chart plotter, VHF radio direction finding equipment and AIS which allows her location to be tracked in real time. She has an endurance of 2.5 hours at maximum speed.

To see the Atlantic 85 in action, Click Here

Launch Type Carriages, davit or floating boathouse (Carriage at Porthcawl)
Crew 3/4
Length Overall 8.44m
Beam Overall 2.85m
Displacement Load 1.8 tonnes
Top Speed 35 knots/ 40mph
Engines 2 x 115hp Yamaha (4 stroke)
Range/ Endurance 2.5 hours
Survivor Capacity 20

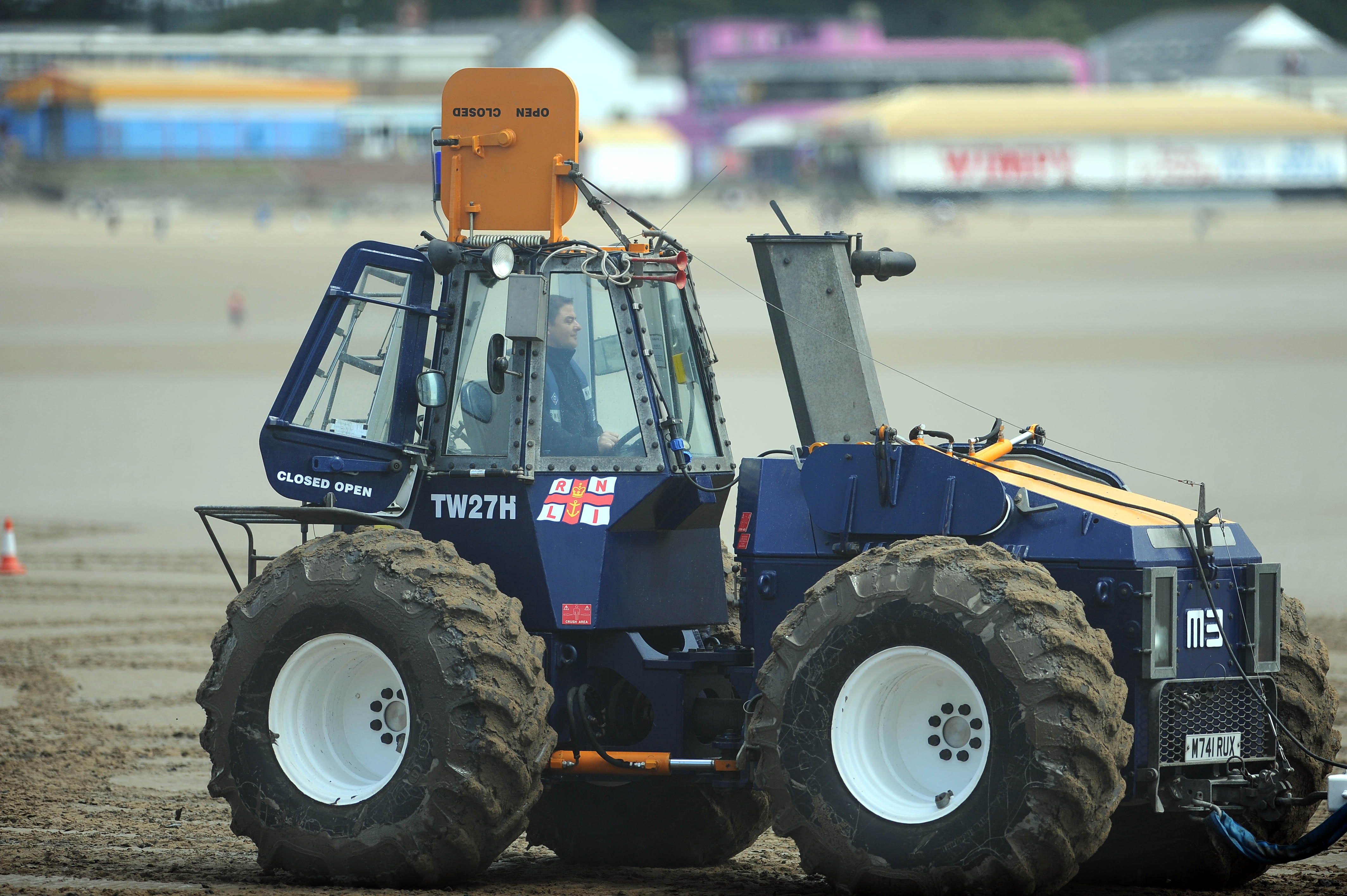

Talus Tractor

Developed jointly with the RNLI, the Talus MB-4H is the first tractor to be specifically designed for the task of launching inflatable lifeboats. Previous lifeboat tractors had been converted from commercial designs.

It was necessary to design a special tractor because commercial designs were becoming more difficult and costly to adapt and could not meet the RNLI requirements, such as ground clearance, steering ability and full waterproofing.

Development took place at Knighton, at the Company Test facility. The prototype was then tested at lifeboat stations with the most arduous launching conditions. Trials were completed and the first tractor went on station at New Brighton in November 1990.

Weight 9.38 tonnes
Max. Speed 22mph
Power 105bhp – Diesel Turbo
Drawbar Pull 5-6 tonnes
Length 4.475m
Width 2.66m
Height 2.75m (hatch down)
Winch Wire Pull 5 tonnes

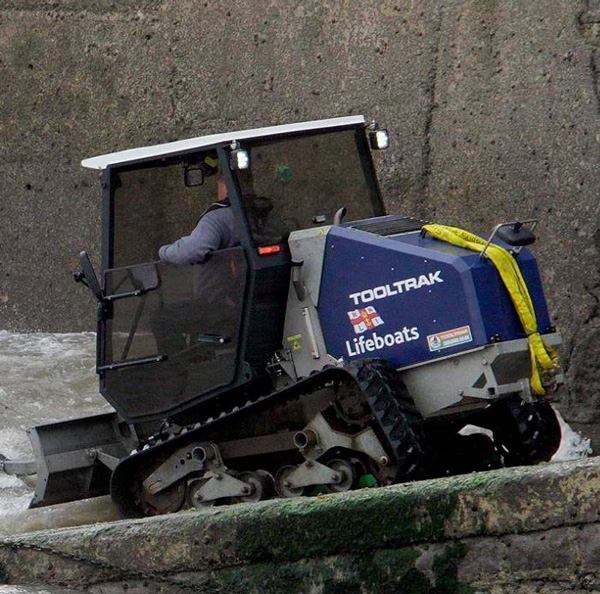

Tooltrak

tooltrak

The RNLI Tooltrak is a compact rubber tracked crawler based tool carrier for use in marine environments for the launch and recovery of lifeboats and other craft. It is designed for operating on extremely soft ground conditions such as estuary mud or sand, or on shingle beaches.

The machine is capable of wading to a depth of 0.65m and is able to withstand momentary swamping by wave action (0.65m) from the front or rear without the engine stalling or the windscreens being damaged.

In the event of water ingress the Tooltrak is fitted with an automatic bilge pump mounted within the vehicle sump.

Weight 1300kg
Max. Speed 10kph
Power 65.3bhp – Diesel Turbo
Maximum Pressure (Auxiliary hydraulic system) 150bar
Length 4.475m
Track Width 350/400/600mm
Max tractive effort 2400kgs
Capacity 2199cc
